STM32 + I2C OLED SSD1306 + u8glib + CubeMX

UPDATE: u8glib is outdated now and there is new library u8g2, with full community support. Here you can find tutorial about usage u8g2 library with stm32 MCU.

If you think, that title of this post consists of all possible random words, you are wrong:) This is what I've been trying to make work correctly during the last days! Actually, the task is not too hard, but only when you've got rid of all possible misunderstanding with datasheets and manuals. And now -tadadam - you are fortunate fellows and you will achieve a good portion of really working code!

Frankly speaking, first thing, which thrown sand into my wheels was this blog. It was good starting point, but it does not work for me. I'll explain why a little after.

Ok, now I'll tell a bit about what I'm talking about. U8blib - is cool library to manage with various monochrome displays. It could take the responsibility of middle-level interface with display. For example, draw lines, place text, another primitives - everything this library can. But you need to provide low-level interface to it - such as byte send, reset device, delays etc. SSD1306 OLED display - this is the guy, like this:

I've bought it on aliexpress, and selected I2C connected display. Also, I have SPI version. But today we'll talk about I2C only.

Ok, let's start. First - download latest version of u8glib library here:
https://bintray.com/olikraus/u8glib/ARM/view

Unpack archive, we'll see folders  src and two folders for lpc controllers. But we are cool guys and we need code for cool controllers:) Thus - we delete folders for LPC controllers, and we'll make folder inc. Into inc folder place files u8g_arm.h (need to be created manually), and u8g.h (already existed in src folder).

u8g_arm.h contains:

 #ifndef _U8G_ARM_H
 #define _U8G_ARM_H


 #include "u8g.h"
 #include "stm32f4xx_hal.h"


 #define DATA_BUFFER_SIZE 1000
 #define I2C_TIMEOUT 10000
 #define DEVICE_ADDRESS 0x78 //device address is written on back side of your display
 #define I2C_HANDLER hi2c3

 extern I2C_HandleTypeDef hi2c3; // use your i2c handler


 uint8_t u8g_com_hw_i2c_fn(u8g_t *u8g, uint8_t msg, uint8_t arg_val, void *arg_ptr);

 #endif

u8g_arm.c:

 #include "u8g_arm.h"

 static uint8_t control = 0;
 void u8g_Delay(uint16_t val)
 {

  HAL_Delay(val);
 }

 void u8g_MicroDelay(void)
 {
  int i;
  for (i = 0; i < 1000; i++);
 }

 void u8g_10MicroDelay(void)
 {
      int i;
      for (i = 0; i < 10000; i++);
 }


 uint8_t u8g_com_hw_i2c_fn(u8g_t *u8g, uint8_t msg, uint8_t arg_val, void *arg_ptr)
 {
  switch(msg)
  {
   case U8G_COM_MSG_STOP:
    break;

   case U8G_COM_MSG_INIT:
    u8g_MicroDelay();
    break;

   case U8G_COM_MSG_ADDRESS:           /* define cmd (arg_val = 0) or data mode (arg_val = 1) */
    u8g_10MicroDelay();
    if (arg_val == 0)
    {
         control = 0;
    }
    else
    {
         control = 0x40;
    }
    break;

   case U8G_COM_MSG_WRITE_BYTE:
   {
        uint8_t buffer[2];
        buffer[0] = control;
        buffer[1] = arg_val;
        HAL_I2C_Master_Transmit(&I2C_HANDLER, DEVICE_ADDRESS, (uint8_t*) buffer, 2, I2C_TIMEOUT);
   }
        break;

   case U8G_COM_MSG_WRITE_SEQ:
   case U8G_COM_MSG_WRITE_SEQ_P:
   {
        uint8_t buffer[DATA_BUFFER_SIZE];
           uint8_t *ptr = arg_ptr;
           buffer[0] = control;
           for (int i = 1; i <= arg_val; i++)
           {
                buffer[i] = *(ptr++);
           }
           HAL_I2C_Master_Transmit(&I2C_HANDLER, DEVICE_ADDRESS, (uint8_t *)buffer, arg_val, I2C_TIMEOUT);
   }

    break;
  }
  return 1;
 }

I'll remind you: place u8g_arm.c file into src folder, make inc folder and place there u8g.h file (without changes) and our prepared file u8g_arm.h.

Why we did this all?
U8glib must have access to low-level functions to work with display. It needs delay functions and function which could perform such operations: write byte to display, write sequence of bytes, init display etc.
Our OLED display works a little bit tricky: it has two modes of sending data. First - send command and second - send data. And how it recognises them? Before every byte, which you'll send, you need to send "instruction" to display, to told display, what type of data you'll send: data or command. If you intend to send command, you need to send [0x00 0xyour_command] array. If you want to send data, you need to send [0x40 0x_your_data] array. By the way, that blog, which I have mentioned before, made this operations incorrectly, which leads to wrong operation.

Ok, now we're ready to start CubeMX and prepare our project. I'll skip steps, where I just pick up my discoveryF4 board.

Clock configuration stay unchanged, also I've did not changed any I2C configuration:

Ok, let's generate project for system workbench, and try to compile it + flash your controller. If you have not achieved success with this, problem is not in display:)
Now, we'll place our previously prepared folders "src" and "inc" into folder "your_project_folder\Drivers\u8glib\". I do not know why, but eclipse-based SystemWorkbench tool does not see our folder, and we need to link it manually to our project. Right-click on folder "Drivers" in project explorer, New->;Folder, then button "Advanced", there - "Link to alternate location"(huh, difficult, maybe someone knows how to do this simpler?).
Then - right-click on project, there - properties. There we need to add our folder to includes.

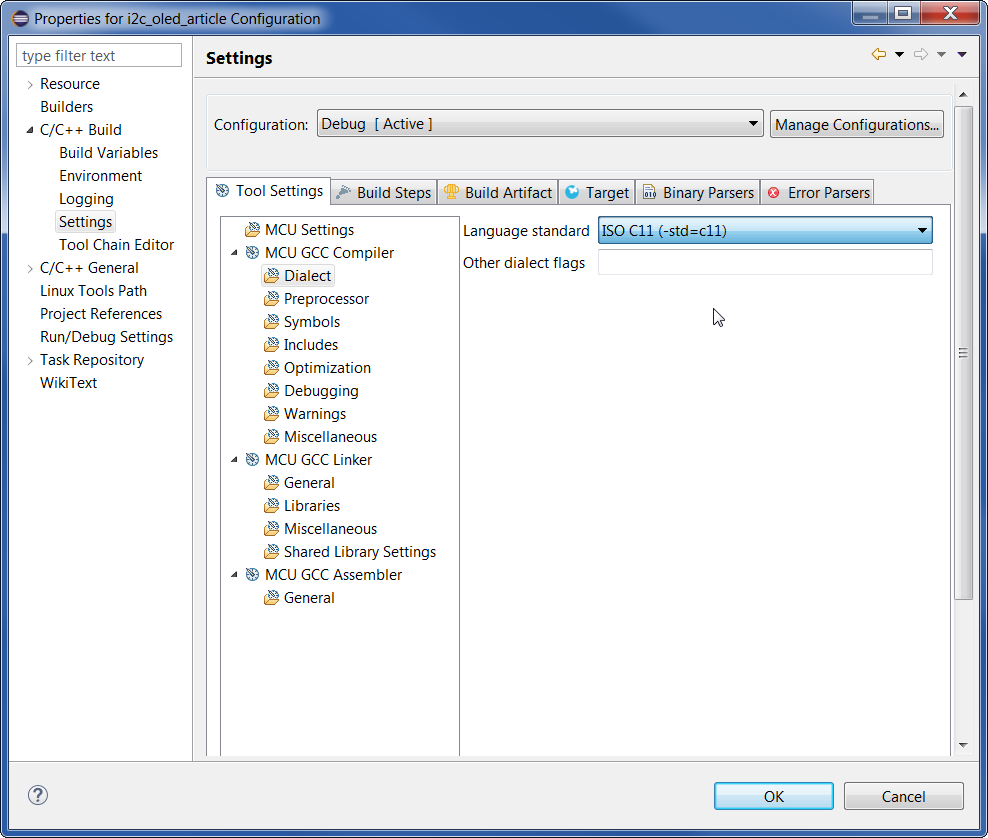

Also, I've changed c language dialect, to be able write like this:
for(int i = 0; i < 10; i++)
because older standards allows only like this:
int i;
for (i = 0; i < 10; i++)

and turn off code optimization.


Also, there is another issue. U8glib has A LOT of fonts for writing strings on your display. But they has large size. So, you need to select only fonts, which you need. You can watch them here: https://github.com/olikraus/u8glib/wiki/fontsize. And then, I'll select only two by deleting unnecessary fonts in file u8g_font_data.c. Or, you can just comment. Idea is to left only this per font:

 #include "u8g.h"
 const u8g_fntpgm_uint8_t u8g_font_profont10[2560] U8G_FONT_SECTION("u8g_font_profont10") = {
 /*you font, i've not placed this*/
  };


Ok now we'll open our main.c
 and modify it like this:

  /* Includes ------------------------------------------------------------------*/
 #include "stm32f4xx_hal.h"

 /* USER CODE BEGIN Includes */
 #include "u8g_arm.h"
 /* USER CODE END Includes */

 /* Private variables ---------------------------------------------------------*/
 I2C_HandleTypeDef hi2c3; /*this is our handler, you need to place it in your u8g_arm.h file!!!!!

 /* USER CODE BEGIN PV */
 /* Private variables ---------------------------------------------------------*/
 static u8g_t u8g;
 /* USER CODE END PV */

 /* Private function prototypes -----------------------------------------------*/
 void SystemClock_Config(void);
 static void MX_GPIO_Init(void);
 static void MX_I2C3_Init(void);

 /* USER CODE BEGIN PFP */
 /* Private function prototypes -----------------------------------------------*/

 /* USER CODE END PFP */

 /* USER CODE BEGIN 0 */
 /*
 Function which responds for drawing
 */
 void draw(void)
 {
      u8g_SetFont(&u8g,u8g_font_profont10);//set current font
      u8g_DrawStr(&u8g, 2, 12, "Hello!");//write string - you set coordinates and string
      u8g_DrawBox(&u8g, 30, 30, 35, 35);//draw some box
 }
 /* USER CODE END 0 */

 int main(void)
 {

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration----------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* Configure the system clock */
  SystemClock_Config();

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_I2C3_Init();

  /* USER CODE BEGIN 2 */
  u8g_InitComFn(&u8g, &u8g_dev_ssd1306_128x64_i2c, u8g_com_hw_i2c_fn); //here we init our u8glib driver
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
  /* USER CODE END WHILE */

  /* USER CODE BEGIN 3 */
  //this loop correspond of drawing
       u8g_FirstPage(&u8g);
           do
           {
                draw();
                } while ( u8g_NextPage(&u8g) );
                u8g_Delay(10);
  }
  /* USER CODE END 3 */

 }
 /* UNCHANGED PART OF YOUR CODE */

 Do not forget to place your i2c handler to u8g_arm.h file!
u8g_InitComFn(&u8g, &u8g_dev_ssd1306_128x64_i2c, u8g_com_hw_i2c_fn); - here we init our driver and tell it, what function if responsible for low-level communication with our display.

Everything you want to draw you place to draw() function.
Code here: https://github.com/sincoon/SSD1306_I2C

Tadam! Start debug, and we see wonderful picture with square and little text:)
The only issue, which I've found - there is some garbage at last pixel in row, and now I do not know how to fix this. I hope, I'll found solution, and tell you. Or, you'll find and tell me:)


P.S. Dear fellows, I hope that somebody read this article:) And I hope that for someone it will be helpful. Also, I have bad English spelling and styling skills, and if someone want help to improve this article by fixing this text, you are welcome! Just write to me to sincoon@gmail.com. Also, your comments are also very appreciated! Thank you all!
